Applicable vehicle model:
For VW ，Skoda ，Seat ，Passat B6/B7/V6/NMS/CC/TSI ,Passat CC 2007-2013, TIGUAN 2007-2013 ，TOURAN 2005-2013 ,TIGUAN/TIGUAN GP ,Jetta 2005-2013
For POLO ,New POLO 2010-2013 ,Polo 2011 ,Polo 2015
For Golf 2012 ，Golf V 2003-2013 ，Golf VI 2008-2013 ，Golf PLUS 2003-2009 ，Golf MKS 2003-2012 ，Golf CROSS
For Altea ab 05/2004 ,Altea 2007-2011
Fabia Combi ab April 2007 to 2012
Toledo ab 12/2004 ,Toledo 2004-2009
CADDY 2004-2013 ,2017
LEON 2005-2010 , Leon ab September 2005
Altea XL ab 04/2007
Octavia limousine ab 06/2004 bis facelift
Alhambra ab 2010 , Alhambra Seat 2010-2011
Octavia II 2 and III3
Snowman ab 2009-2012
Superb/3 T ab 2008 to 2012
Fabia 2012
Rapid 2013/2015
Transporter T5 2010-2011
EOS 2006-2011
SCIROCCO 2008-2013
BORA 2007-2013
SHARAN 2010-2011
Feature:
1. Radio (FM/AM)

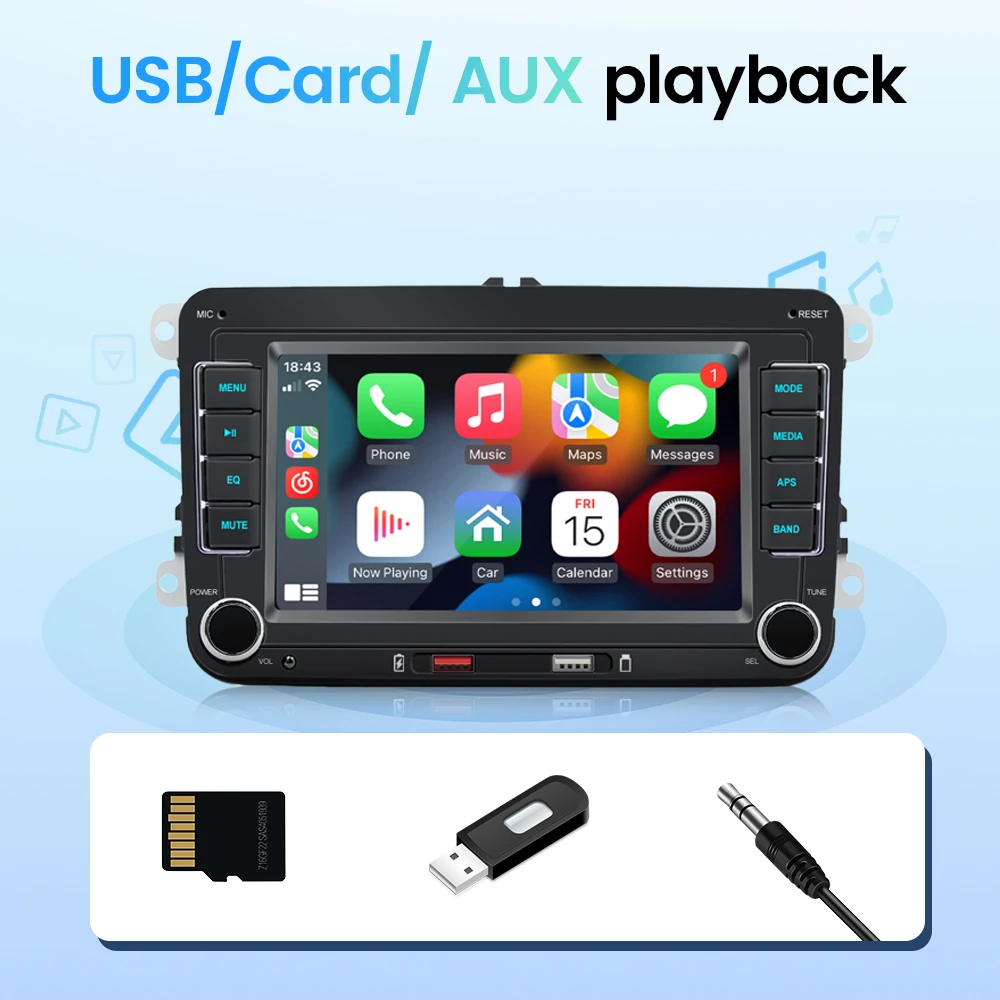

2. Supports reading USB flash drives (audio/video/picture)
3. Rear audio input function
4. Bluetooth function
5. Subwoofer output

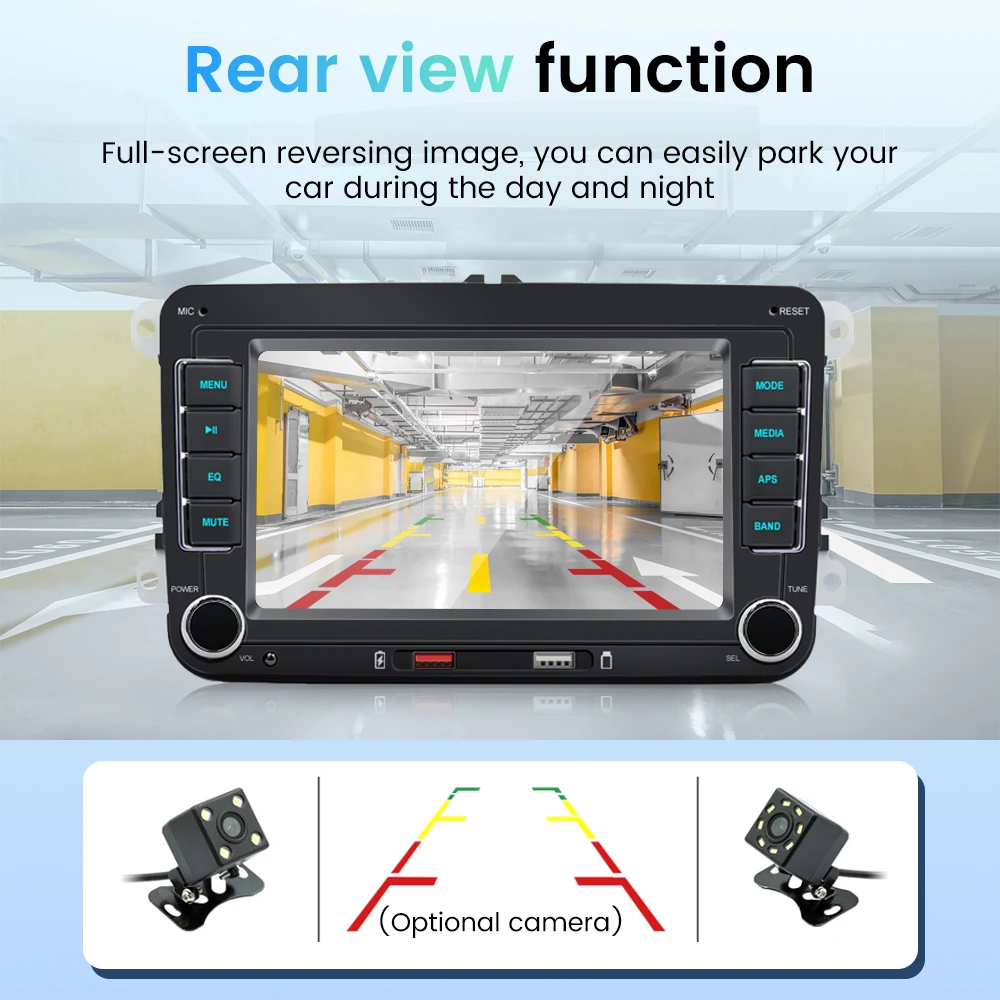

6. Rear view camera input function
7. Video input
8. The original car steering wheel learning function
9. Dash cam input function
10. WiFi hotspot
11. GPS Navigation (If the navigation does not work, consult our customer service for the latest map)

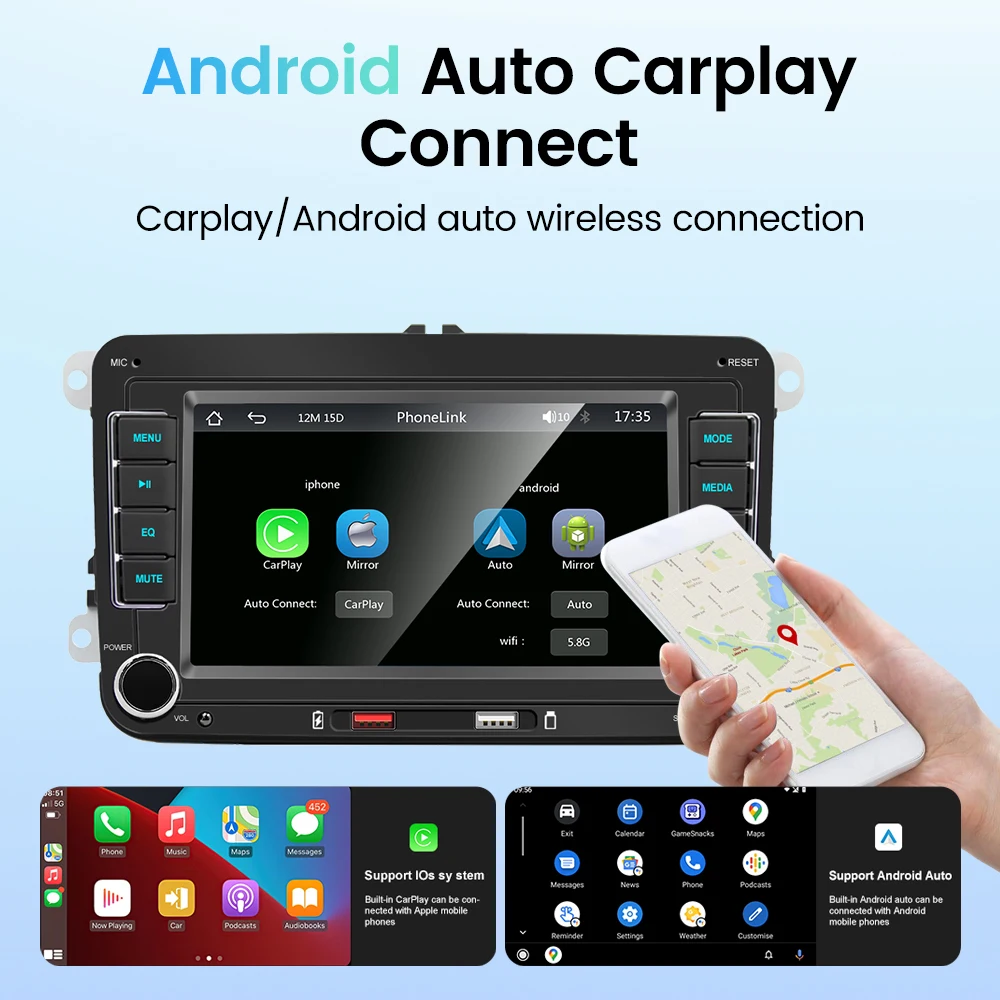

12. Phone connectivity (for iOS/Android)
13. Can install apps
14. RDS function, can receive traffic radio in real time
15. USB charging function (2.1A)

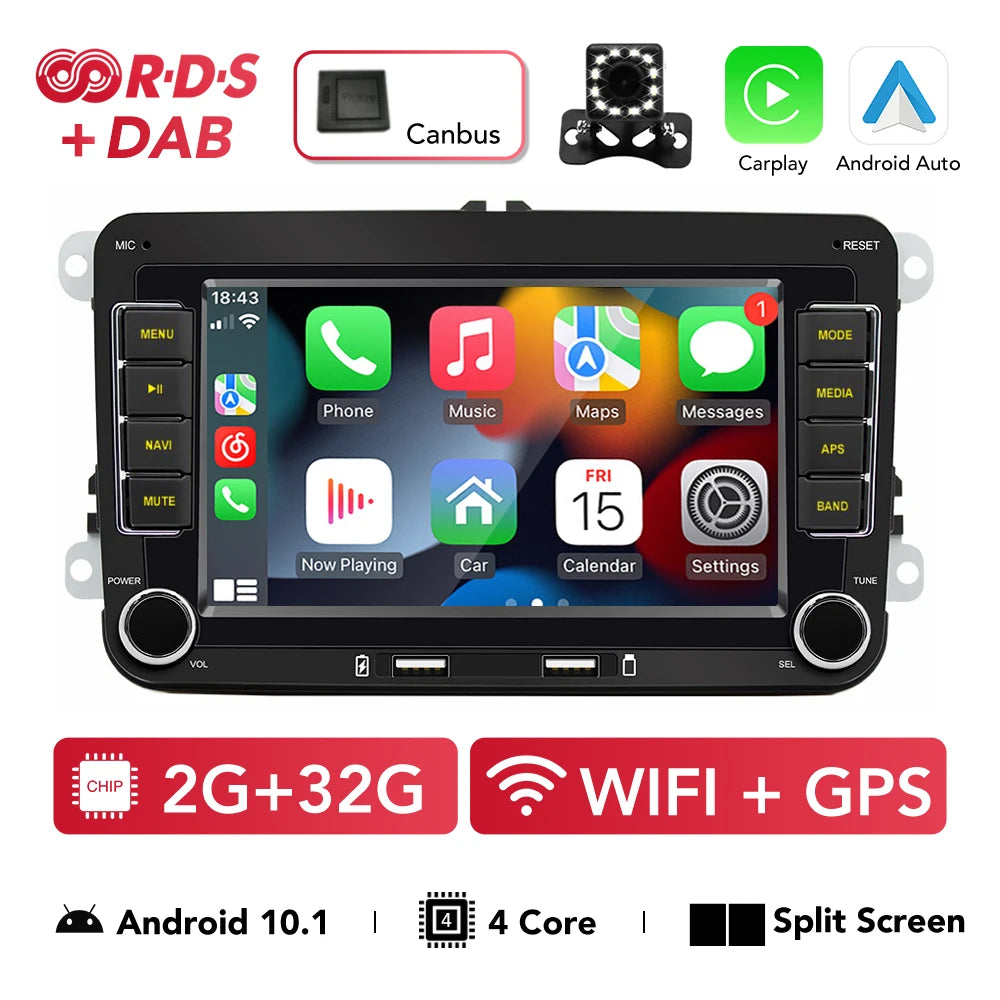

Specification:
Type: 1GB (DDR3) RAM + 16GB ROM, 2GB RAM+ 32GB ROM (Optional)
Car-Play function: Yes, No (Optional)
DAB function: Yes, No (Optional)
Model: S-9070 (7 inches)
OS: Android 10.1
Software solution: Hengchen
Radio frequency: FM 87.5~108.0MHz, AM 522-1620kHz (support RDS function)
Radio IC: 4732
Power amplifier IC: YD7388
Output power: 60Wx4
Working voltage: 12~14.4V
Working temperature -10℃~+60℃
Bluetooth version: 4.0 (default name: Car-BT)
WiFi frequency: 2.4GHz
GPS signal: GPS satellites
CPU: A7, 1.3GHz x 4
Display Resolution: 1024x600
Screen size: 7 inches (IPS display)
Installation size: 222x132mm (dedicated for Volkswagen)

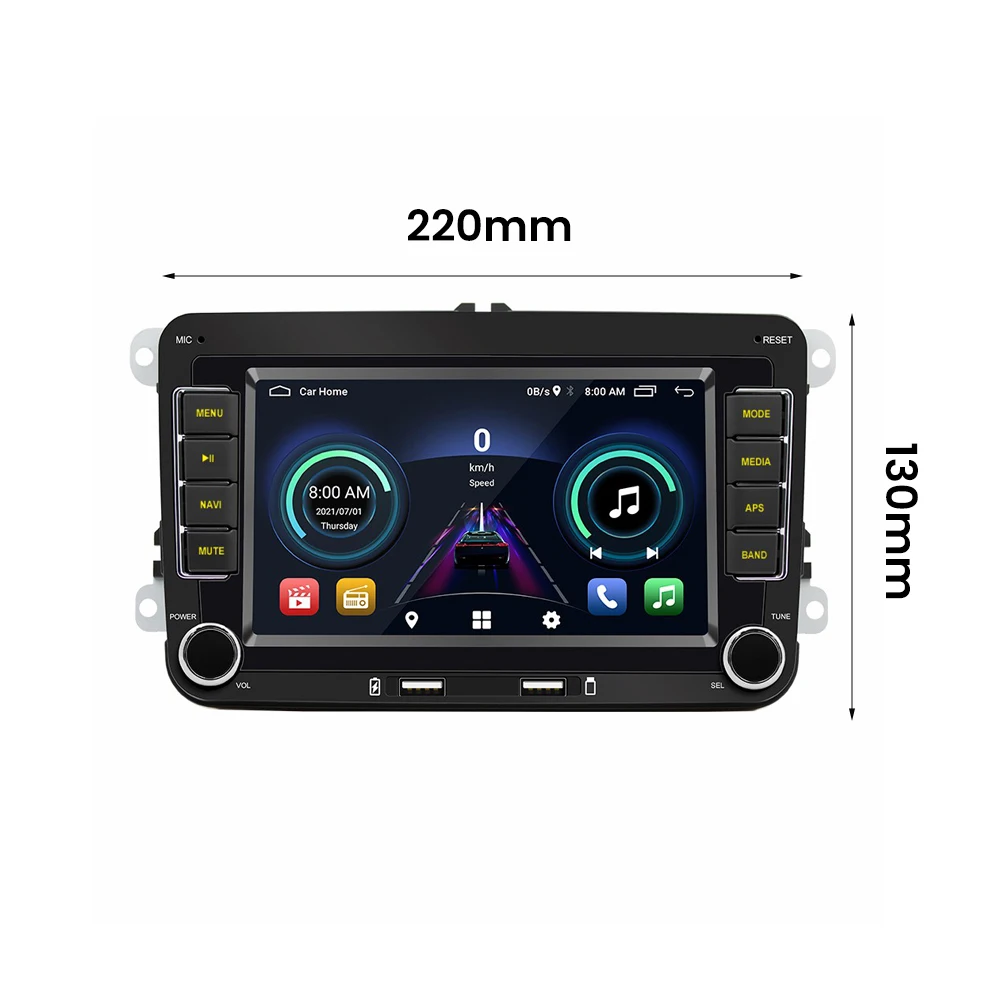

Shell size: 220x130mm
Depth: 30mm
Color box size: 290x190x103mm (cowhide box)
Weight: 1.10kg

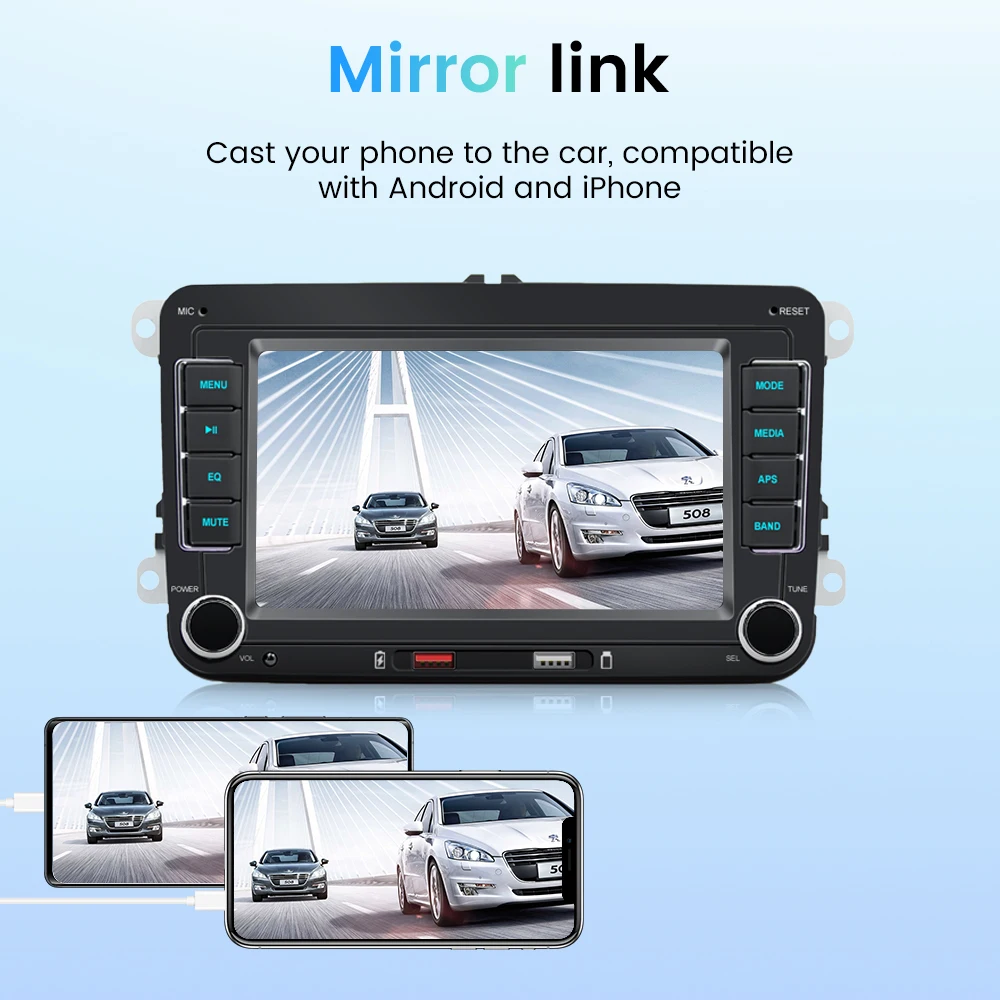

Phone connectivity: Support (for iOS/Android)
Locate and find a car: not supported
Screen rotation: not supported
Rearview camera input: support (rear view camera NOT included)
Play Video Warning: Support
Steering wheel control: support button learning
Video output: support
Offline map: support
Dash cam input: support (USB signal input)
GPS Navigation: Support

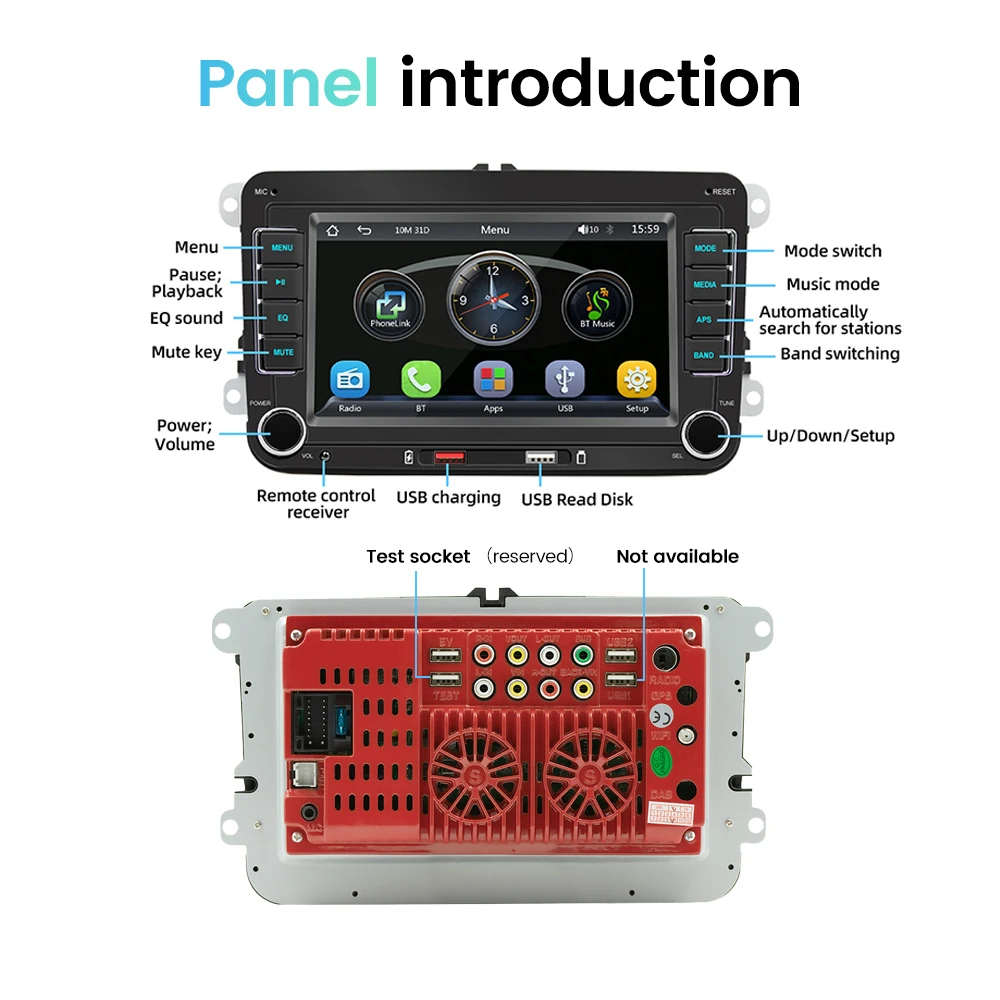

Front USB port 2: USB 2.0
Rear USB port 2: USB 2.0
5V USB port: front USB charging port + rear USB charging port, 2.1A
External microphone interface: support
Reset button: support
Audio output: 2 channels (left channel + right channel)
Subwoofer output: 1 channel
Video output: 1 channel
Audio input: 2 channels (left channel + right channel)
Video input: 2 channels
Revese camera input: 1 channel
Audio format: MP3/WMA/WAV/APE/FLAC/AAC/OGG/RM
Video format: MPEG/AVI/RM/FLV/ASF/WMV/MP4/MKV/OGM/TS/DivX/RMVB/VOB
Image format: JPG/BMP/PNG/JPEG/GIF
Language: English/Simplified Chinese/Traditional Chinese/Russian/Portuguese/Arabic/Spanish/Italian/Turkish/Vietnamese/Thai/Hungarian/Hebrew/Persian
Factory setting password: 000000
Note:
There may be slight size deviations due to manual measurement, different measuring methods, and tools.
The picture may not reflect the actual color of the item because of different photographing light, angles, and monitors.

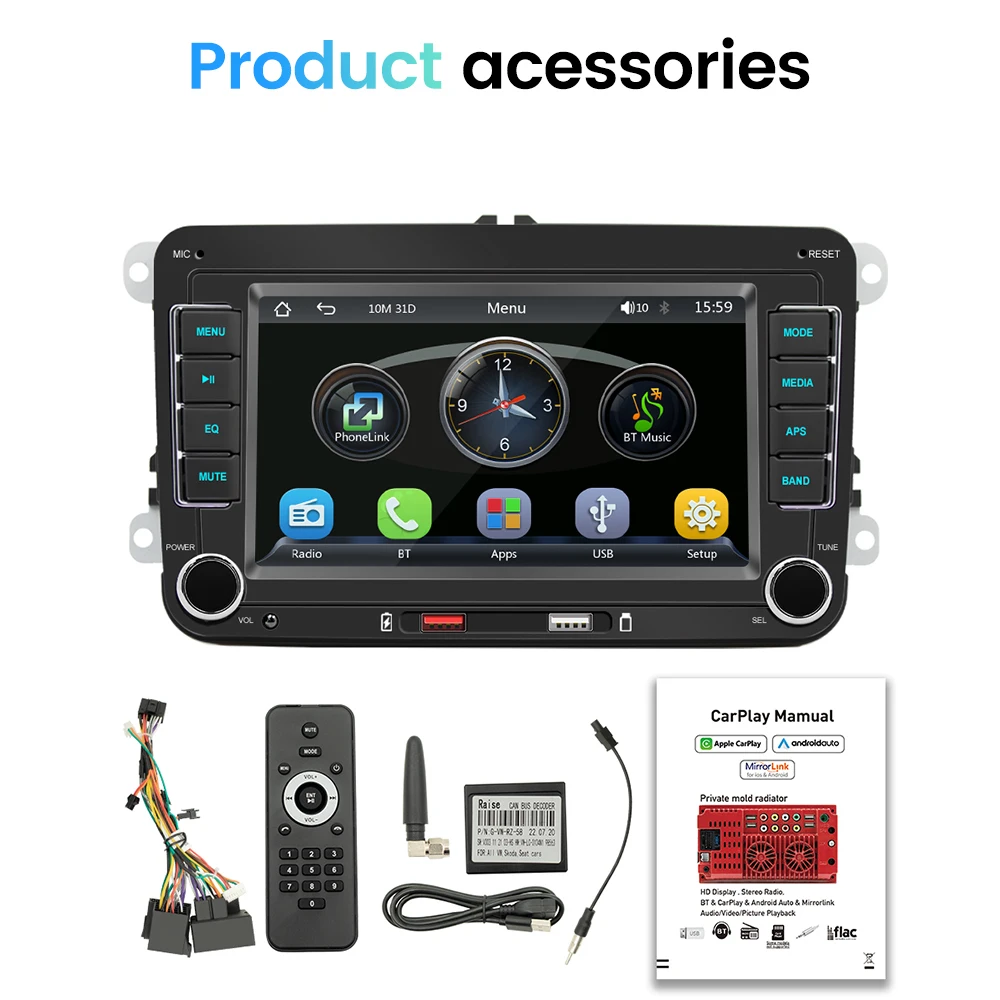

Package includes:
1 X Car Radio
1 X GPS Antenna
2 X Power Cables
1 X USB Cable
1 X Mounting Bracket
1 Set X Screws
1 X USB Extension Cable
1 X WiFi Antenna
1 X Manual
